Outdoor - A Series

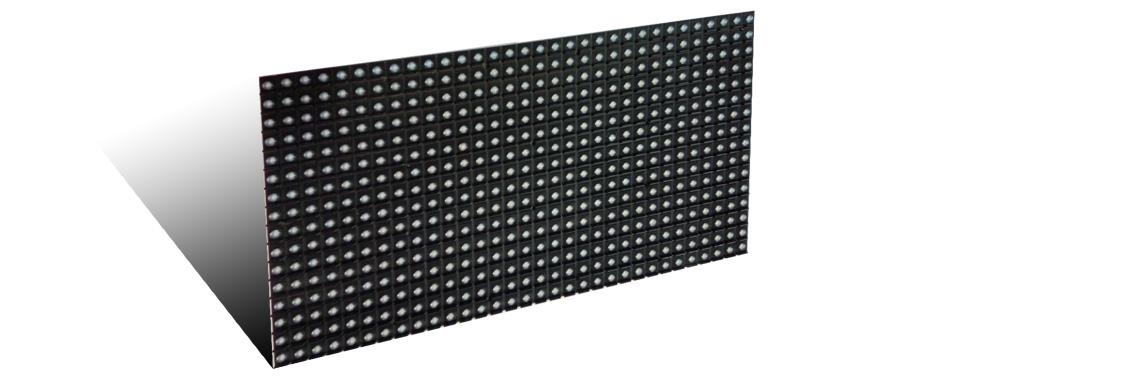

P10 A Series

P10 A Series
Module
Dimendions (w x h) : 320mm x 160mm
Pixel Pitch : 10mm
LED Lamp : Epistar Chip
Pixel Configuration : 1R 1G 1B
Back Up System : Dual Cable Connectiob Between Module
Input Indicator :RED for POWER ; GREEN for DATA

Cabinet
Dimensions (w x h x d)(mm) : 960x960x150
Phycal Resolution (w x h) : 96x 96
Weight / Panel (kgs) : 45
Average Power / sqm (watts) : 500
Module Quantity : 18
Phycal pixels (total) : 9216
Material : Cold Rolled Steel
Max power / sqm (watt) : 1000

Parameter
Brightness : >8.000 cd/m2
Viewing Angle : Horizontal 120(+60/-60) deg.                      Vertikal 60(+30/-30)deg.
Minimum Viewing Distance : 10 meter
Brightness Control : 100 level
Gray scale : 16384 level
Refresh Frequency : >1000 hertz
Driving mode : ¼ scan
Input Power fequency : 50 or 60 hertz
Input Voltage : 110~240 Volt
Blind spot rate : < 1/10000
Lifetime at 50% brightness : 100.000 hours
Ingress Protection : Front IP65, Rear IP54
Operating temperature : - 20~ + 600C
Operation humidity : 10% ~ 90%
Control Distance : CATS cable: <100m; single mode fiber:<10km
Signal input Format : AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Operating system : Windows 7
